    Aerial Work Self Propelled Scissor Lift Movable Proportional Control

    Ask Lasest Price
    Brand Name : Yamei
    Model Number : JCPT1212DC
    Certification : CE, ISO9001, ISO14001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 units 30 days
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

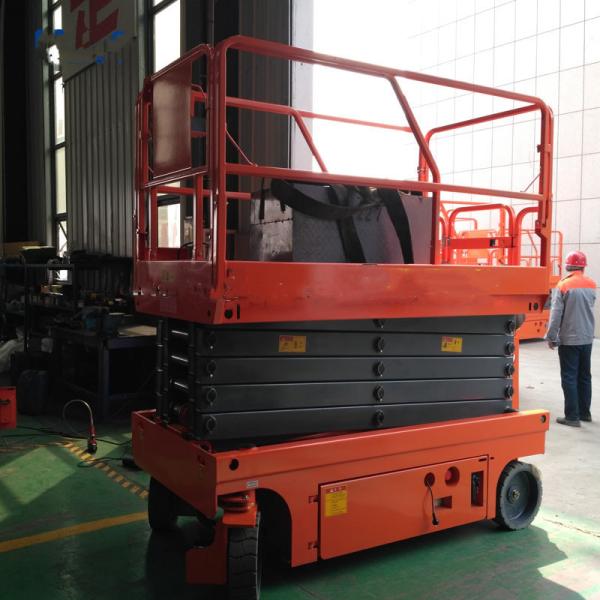

    Aerial Work Self Propelled Scissor Lift Movable Proportional Control

    Aerial Work Platform 10m Electric Drive Self Propelled Scissor Lift


    Advantage


    All our platform are stable performance, flexible and smarter operation,more reliable as passed

    by endurance test.

    The platform are designed to improve human aerial working condition.

    Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.

    The main parts are from famous brand suppliers

    Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
    Moving forward,turning around and lifting up are easily operated.
    Short chargeable time and long dural time of the battery.
    Easily moved, spacious working platforms, smooth working condition and high working efficiency

    Standard features


    ● Proportional control

    ● Automatic Pothole Guard System

    ● Solid non-marking tires

    ● Auto brake system

    ● Emergency platform lowering system

    ● Emergency stop button

    ● Hour meter

    ● Cylinder holding valve
    ● Onboard diagnostic system

    Flashing Beacon

    All Motion Alarm

    ● Motion alarm

    ● Electronic horn

    ● Extension platform

    ● Descent alarm

    ● Descent protection

    ● Tilt protection system

    ● Folding rails

    ● Protection bar around chassis


    Aerial Work Self Propelled Scissor Lift Movable Proportional Control


    Aerial Work Self Propelled Scissor Lift Movable Proportional Control Aerial Work Self Propelled Scissor Lift Movable Proportional ControlAerial Work Self Propelled Scissor Lift Movable Proportional Control


    Production SpecificationJCPT1212DC
    Measurement
    Working Height Max.12m
    A Platform Height Max.10m
    B Platform Height Stowed1.93m
    C Platform Length-outside2.43m
    Extended3.33m
    Slide-out Platform extension deck0.90m
    D Platform Width1.15m
    E Height-stowed: guardrail raised2.44m
    F Length-Stowed2.43m
    G Width1.21m
    H Wheel Base1.87m
    I Ground Clearance10cm
    J With Pothole Guards Deployed1.9cm
    Productivity
    Max. Platform Occupancy2
    Lift Capacity320kgs
    Drive speed-stowed3.5km/h
    Drive speed-Raised0.8km/h
    Gradeability25%
    Max. Tilt3°/ 2°
    Turning Radius(inside)0
    Turning Radius(outside)2.33
    Raise/lower speed45/36sec
    Non-marking tiresΦ381×127
    Power
    Power Source24V/3.3KW
    Battery4x6V/225Ah
