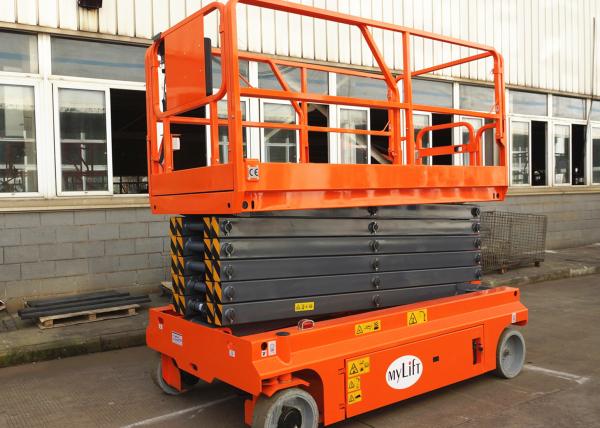

13.7m Self Propelled Scissor Lift Electric Hydraulic Man Lift Platform

    Buy cheap 13.7m Self Propelled Scissor Lift Electric Hydraulic Man Lift Platform from wholesalers

    Buy cheap 13.7m Self Propelled Scissor Lift Electric Hydraulic Man Lift Platform from wholesalers
    • Buy cheap 13.7m Self Propelled Scissor Lift Electric Hydraulic Man Lift Platform from wholesalers

    13.7m Self Propelled Scissor Lift Electric Hydraulic Man Lift Platform

    Ask Lasest Price
    Brand Name : Yamei
    Model Number : JCPT1614DC
    Certification : CE, ISO9001, ISO14001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 30 units 30 days
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    13.7m Self Propelled Scissor Lift Electric Hydraulic Man Lift Platform

    Self Propelled Aerial Work Platform 13.7m Electric Drive


    Application


    The self propelled aerial working platform are designed to improve human aerial working condition.

    Excellent for both indoor&outdoor construction, they’re operated ideallyin tight space making it’s easy for any maintenance and installation applications.

    All our platform are stable performance, flexible and smarter operation,more reliable as passed

    by endurance test.


    Quality Assurance


    The main parts are from famous brand suppliers.

    We pass by ISO9001 quality management system and ISO4001 environment management system .

    Our products are available with the CE mark conforming compliances with all relevant European Machinery Directives.


    Standard features


    ● Proportional control

    ● Automatic Pothole Guard System

    ● Solid non-marking tires

    ● Auto brake system

    ● Emergency platform lowering system

    ● Emergency stop button

    ● Hour meter

    ● Cylinder holding valve
    ● Onboard diagnostic system

    Flashing Beacon

    All Motion Alarm

    ● Electronic horn

    ● Extension platform

    ● Descent alarm

    ● Descent protection

    ● Tilt protection system

    ● Folding rails

    ● Protection bar around chassis


    13.7m Self Propelled Scissor Lift Electric Hydraulic Man Lift Platform


    Production Specification


    13.7m Self Propelled Scissor Lift Electric Hydraulic Man Lift Platform 13.7m Self Propelled Scissor Lift Electric Hydraulic Man Lift Platform 13.7m Self Propelled Scissor Lift Electric Hydraulic Man Lift Platform


    Production SpecificationJCPT1614DC
    Measurement
    Working Height Max.16m
    A Platform Height Max.14m
    B Platform Height Stowed2.06m
    C Platform Length-outside2.84m
    Extended3.74m
    Slide-out Platform extension deck0.90m
    D Platform Width1.39m
    E Height-stowed: guardrail raised2.59m
    F Length-Stowed2.84m
    G Width1.45m
    H Wheel Base1.87m
    I Ground Clearance10cm
    J With Pothole Guards Deployed1.9cm
    Productivity
    Max. Platform Occupancy2
    Lift Capacity227kgs
    Drive speed-stowed3.5km/h
    Drive speed-Raised0.8km/h
    Gradeability25%
    Max. Tilt3°/ 2°
    Turning Radius(inside)0
    Turning Radius(outside)2.33
    Raise/lower speed88/60sec
    Non-marking tiresΦ381×127
    Power
    Power Source24V/3.3KW
    Battery4x6V/225Ah
